Ford 6.4 Powerstroke Full Delete Kit with SCT BDX (2008-2010)
The 2008, 2009, 2010 Ford 6.4 Powerstroke Delete Kit with SCT BDX combines custom engine calibration with a DPF/CAT exhaust solution and an optional EGR removal package for off-road F-250, F-350, and F-450 pickups. The package removes major factory restrictions, stops regeneration after correct tuning, and allows selectable performance calibrations.

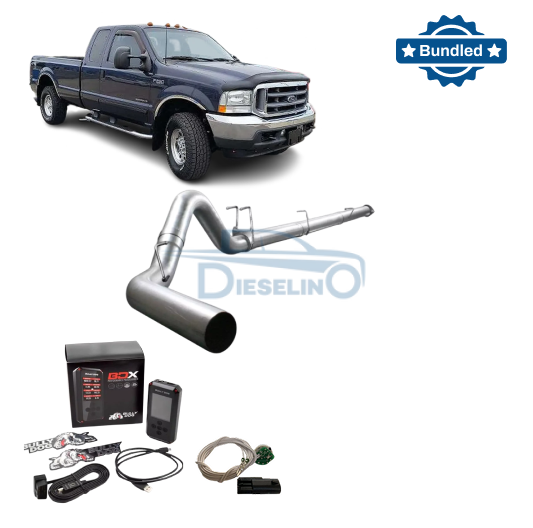

What's included in 6.4 Powerstroke delete kit
-
SCT BDX Tuner - A handheld programmer used to load the vehicle-specific custom tune through the diagnostic port. The BDX also supports diagnostic functions, monitoring, data logging, and reading or clearing DTCs.
-

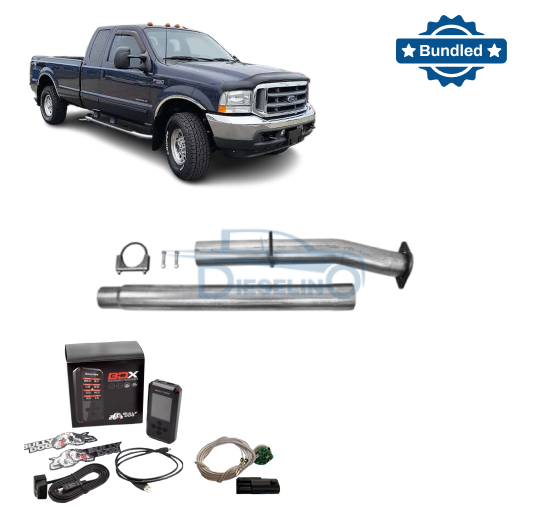

4-Inch DPF/CAT Delete Pipe - T409 stainless steel pipe that replaces the factory diesel particulate filter and catalyst section while retaining the factory downpipe. Clamps, hangers, fasteners, and required mounting hardware are included.
-
5-Inch Exhaust System - An optional stainless steel downpipe-back configuration for owners who want a larger path and deeper note. Installation hardware is supplied with the selected system.
-

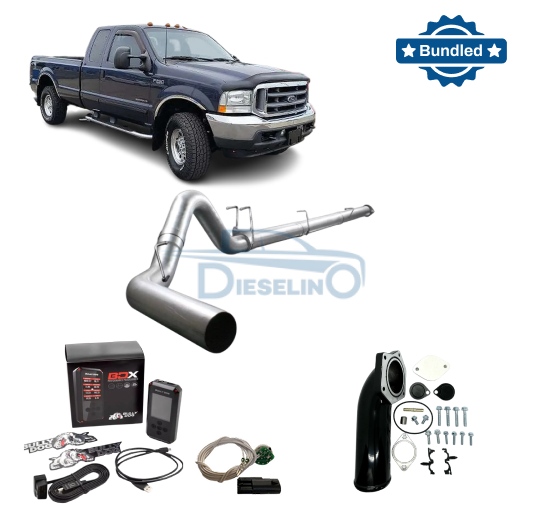

EGR Delete Kit - The optional 6.4 Powerstroke EGR delete kit removes the factory gas recirculation valve and cooler hardware. The kit uses block-off components, gaskets, and installation hardware matched to the 6.4L engine.
-
Custom Calibration - The SCT BDX receives a vehicle-specific tune based on the truck information supplied after purchase. VIN and tuner information are required before the custom file is prepared.
The 2008-2010 6.4L platform uses a DPF, diesel oxidation catalyst, and EGR system. The factory engine does not use a urea DEF or SCR system.
Vehicle compatibility
The SCT BDX kit fits 2008-2010 Ford Super Duty pickup trucks equipped with the 6.4L Powerstroke diesel.
-
Years: 2008, 2009, 2010
-
Make: Ford
-
Models: F-250, F-350, F-450
-
Engine: 6.4L Powerstroke V8 diesel
-
Body style: Pickup
-
Transmission: 5R110 automatic and supported manual applications
-
Factory emissions equipment: DPF, catalyst/DOC, EGR
-
DEF/SCR: Not equipped from the factory
-
Cab & Chassis: Not compatible with this pickup-specific Powerstroke kit
Cab and bed configuration should still be confirmed before ordering the pipe option.
Performance & tuning
The SCT BDX custom calibration provides several selectable output levels for the 2008-2010 6.4L Powerstroke while also recalibrating the engine for the selected off-road exhaust and EGR configuration.
Key benefits of the tuned configuration include:
-
No forced DPF regeneration
-
Reduced exhaust backpressure
-
Stronger throttle response
-
More towing power available
-
Improved fuel economy potential
Gains by power level
|
Power level |
+HP |
Best for |
|---|---|---|
|
Stock |
0 HP |
Stock-like power |
|
Level 1 |
+50 HP |
Daily driving / light towing |
|
Level 2 |
+100 HP |
Daily performance |
|
Level 3 |
+150 HP |
Stronger street / tow response |
|
Level 4 |
+200 HP |
Maximum listed performance |
Exact torque gains depend on the custom tune, truck condition, supporting modifications, transmission setup, fuel quality, and calibration strategy.
|
Parameter |
Expected change |
|---|---|
|
DPF regeneration |
Disabled with correct off-road calibration |
|
Exhaust restriction |
Reduced after DPF/CAT removal |
|
Fuel economy |
Approximately 3-6 MPG improvement may be possible depending on use and tune |
|
EGTs |
Can decrease when restriction and regeneration are removed |
|
Towing response |
Stronger response available on moderate power settings |
|
Diagnostics |
BDX can read and clear supported DTCs |
The 6.4 Powerstroke tuner uses a custom file rather than relying on an unknown generic calibration. Vehicle information should be submitted and the correct file should be received before emissions hardware is removed.
Which configuration should you choose?
The four available configurations let the buyer choose between retaining more of the factory pipe or replacing the exhaust with a larger 5-inch system.
|
Option |
Choices |
Recommended for |
|---|---|---|
|
Exhaust |
4″ Delete Pipe |
Retaining more factory pipe with lower restriction |
|
5″ Exhaust System |
Larger path and deeper sound |
|
|
EGR hardware |
Without EGR Kit |
Trucks where hardware is not being physically removed |
|
With EGR Kit |
Complete physical valve/cooler removal |
|
|
Tuning |
SCT BDX custom tune |
Handheld custom calibration and diagnostics |
The 4-inch Delete Pipe uses the original downpipe. The 5-inch option replaces the downstream exhaust section rather than adding a new turbo downpipe.
How the delete kit works on your 6.4 Powerstroke
The DPF delete kit combines mechanical pipe changes with matching ECM calibration so the 6.4L Powerstroke no longer relies on the removed aftertreatment hardware.
-
Custom calibration disables factory DPF regeneration strategy.
-
Delete pipe removes DPF and catalyst restriction.
-
EGR hardware option stops exhaust gas recirculation.
-
Reduced restriction lowers exhaust backpressure under load.
-
BDX calibrations provide selectable horsepower for different uses.
The calibration is an essential part of the Powerstroke delete kit because physically removing the particulate filter without matched engine software can trigger warning lights, DTCs, and limp mode.
Installation information
The Powerstroke delete kit includes installation information for the selected exhaust and EGR components. An experienced DIY owner with suitable tools can install the bolt-on hardware, although cooler removal makes the complete Powerstroke delete kit considerably more involved than a pipe-only installation.
Receive and verify the custom tune before removing the DPF, catalyst, or EGR hardware. The SCT BDX custom file requires vehicle information, including the VIN and tuner serial number.
Technical specifications
|
Specification |
Detail |
|---|---|
|
Fitment years |
2008-2010 |
|
Tuner |
SCT BDX / Bully Dog BDX handheld |
|
Tune type |
Vehicle-specific custom calibration |
|
Listed power levels |
Stock / +50 / +100 / +150 / +200 HP |
|
Tune switching |
SOTF-capable with required switch and supported calibration |
|
Transmission |
5R110 automatic; supported manual applications |
|
ECM unlock |
Not required |
|
Delete Pipe |
4-inch |
|
Delete Pipe material |
T409 stainless steel |
|
Pipe option |
5-inch downpipe-back system |
|
Factory downpipe |
Retained with Delete Pipe configuration |
|
Components addressed |
DPF / DOC-catalyst / EGR when selected |
|
DEF / SCR |
Not present on 2008-2010 6.4L Powerstroke |
|
Body style |
Pickup only |
|
Installation |
Bolt-on hardware |
No More Emissions Codes
Correct SCT BDX calibration prevents emissions warnings caused specifically by removing the DPF, catalyst, EGR hardware, and related sensors. Normal diagnostics remain active for unrelated engine, 5R110 transmission, turbocharger, fuel-system, wiring, and sensor faults.
DPF, regeneration, and exhaust aftertreatment codes
|
DTC Code |
Description |
|---|---|
|
P2002 |
Efficiency Below Threshold |
|
P242F |
Restriction / Ash Accumulation |
|
P244A |
Differential Pressure Too Low |
|
P244C |
Temperature Too Low for DPF Regeneration |
|
P244D |
Temperature Too High for DPF Regeneration |
|
P2452 |
Pressure Sensor Circuit |
|
P2453 |
Pressure Sensor Range / Performance |
|
P2454 |
Pressure Sensor Circuit Low |
|
P2455 |
Pressure Sensor Circuit High |
|
P2456 |
Pressure Sensor Circuit Intermittent / Erratic |
|
P2458 |
Regeneration Duration |
|
P2459 |
Regeneration Frequency |
|
P2463 |
Soot Accumulation |
|
P246C |
Restriction / Forced Limited Power |
EGR and cooler codes
|
DTC Code |
Description |
|---|---|
|
P0401 |
Flow Insufficient |
|
P0402 |
Flow Excessive |
|
P0403 |
Control Circuit |
|
P0404 |
Control Range / Performance |
|
P0405 |
Position Sensor Circuit Low |
|
P0406 |
Position Sensor Circuit High |
|
P040B |
Temperature Sensor Range / Performance |
|
P040C |
Temperature Sensor Circuit Low |
|
P040D |
Temperature Sensor Circuit High |
|
P042E |
Control Stuck Open |
|
P042F |
Control Stuck Closed |
|
P0488 |
Throttle Control Range / Performance |
|
P2457 |
Cooler System Performance |
The calibration does not hide unrelated mechanical or electrical problems. A remaining code after installation should be diagnosed rather than assumed to be part of the removed emissions hardware.
Not sure whether your 2008-2010 Super Duty is a compatible pickup or which exhaust configuration fits? Send the VIN to Dieselino before ordering so the correct SCT BDX and hardware kit can be confirmed.
