Ram 6.7 Cummins full delete kit with Mini Maxx V1/V2 (2007.5-2009)
The 2007.5, 2008, 2009 Ram 6.7 Cummins Delete Kit with H&S Mini Maxx V1/V2 combines engine tuning, DPF/catalyst removal, EGR removal, and selectable exhaust hardware in one off-road package. The complete setup eliminates forced regeneration, reduces exhaust restriction and soot recirculation, and provides selectable horsepower levels for daily driving, towing, or performance use.

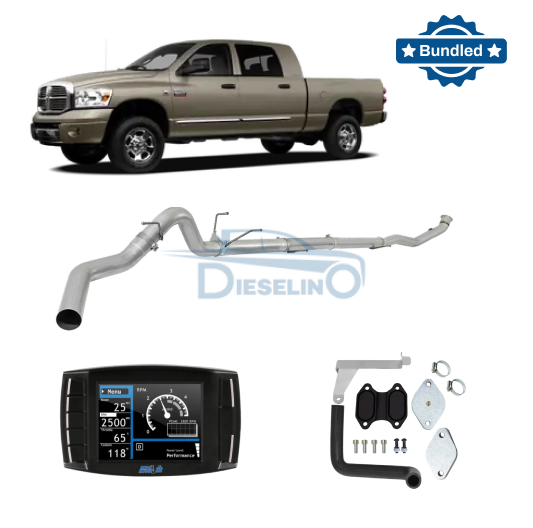

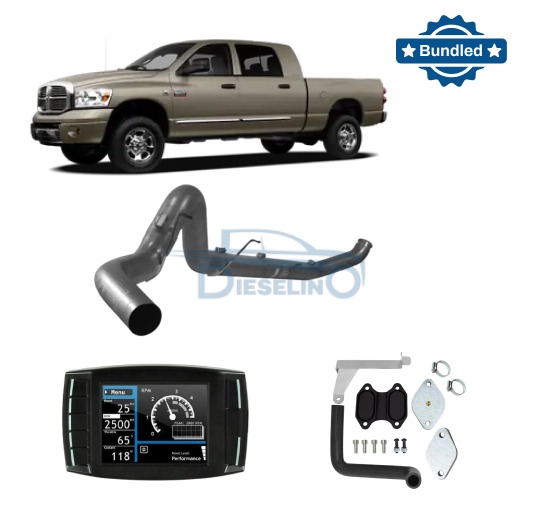

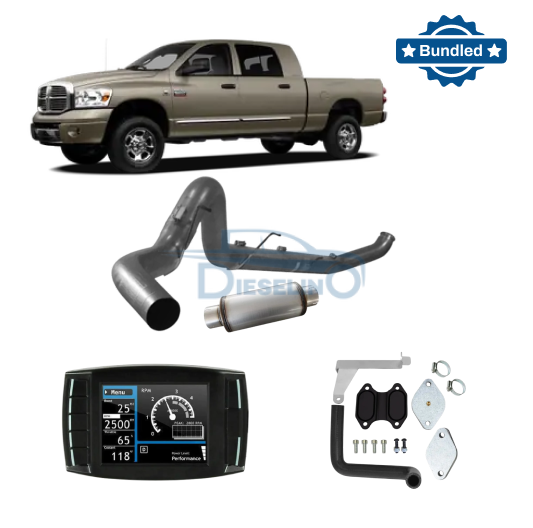

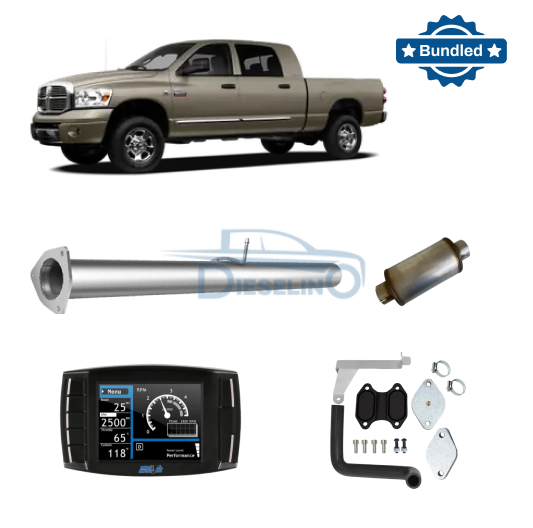

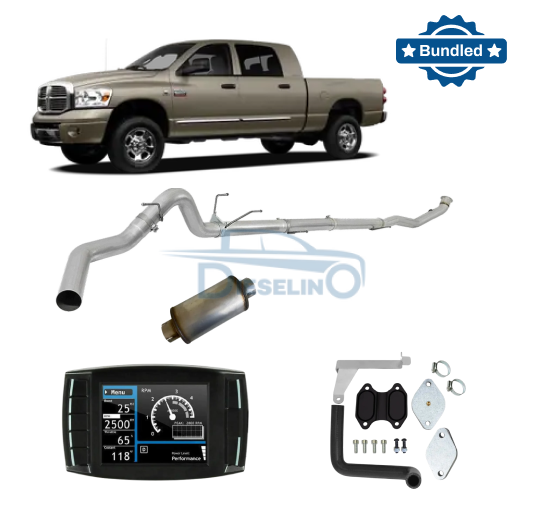

What's included in 6.7L Cummins delete kit
-
H&S Mini Maxx V1 or Mini Maxx V2 Tuner -Β The 6.7 Cummins tuner recalibrates the ECM for the modified DPF and EGR configuration, provides selectable power levels, supports SOTF operation, and can monitor engine parameters.
-
EGR Valve & Cooler Delete Kit -Β The 6.7 Cummins EGR delete kit removes the EGR valve and cooler, reducing exhaust recirculation, soot buildup, intake clogging, and heat transferred through the EGR system. The package includes the required block-off plate and mounting hardware.
-
DPF/CAT Delete Pipe -Β The 4-inch stainless steel delete pipe, or race pipe, replaces the factory particulate filter and catalyst section while retaining more of the original exhaust system.
-
4-Inch Exhaust System - Built from T-409 stainless steel, the 4-inch option provides increased flow, corrosion resistance, and a moderate exhaust tone for daily use and towing.
-
5-Inch Exhaust System -Β The 5-inch option provides the largest exhaust path and a deeper sound. T-409 stainless steel construction and supplied clamps/mounting hardware for the 5-inch system.
-
Muffler Option -Β Choose Straight Pipe for maximum sound or With Muffler for reduced volume and drone.
What changes: H&S Mini Maxx vs Mini Maxx V2
|
What changes |
H&S Mini Maxx V1 |
Mini Maxx V2 |
|---|---|---|
|
Tuner generation |
Legacy H&S platform |
Updated Mini Maxx platform |
|
Delete power levels |
Stock, +60, +120, +175 HP |
Stock, +50, +100, +150 HP |
|
Maximum added power |
+175 HP |
+150 HP |
The Ram Cummins delete kit supports engine monitoring, emissions-off calibration, and SOTF power changes with either compatible tuner configuration.Β
Vehicle compatibility
-
Years: 2007.5, 2008, 2009
-
Make: Dodge Ram
-
Models: 2500, 3500
-
Engine: 6.7L Cummins diesel
-
Body Style: Pickup
-
Cab Configurations: All Pickup cab configurations
-
Cab & Chassis: Not compatible
-
Application: Off-road
Performance & tuning
-
No forced DPF regeneration
-
Faster throttle response
-
Reduced exhaust backpressure
-
Improved towing response
-
Potential fuel economy gain
The Mini Maxx tune determines the available horsepower increase and allows the driver to select a power level suited to the truck's use.
H&S Mini Maxx V1
|
Power Level |
Power Increase |
Best for |
|---|---|---|
|
Stock |
0 HP |
Factory-level output |
|
Tow |
+60 HP |
Daily driving and towing |
|
Street |
+120 HP |
Stronger throttle response |
|
Performance |
+175 HP |
Maximum performance |
Mini Maxx V2
|
Power Level |
Power Increase |
Best for |
|---|---|---|
|
Stock |
0 HP |
Factory-level output |
|
Tow |
+50 HP |
Daily driving and towing |
|
Street |
+100 HP |
Street performance |
|
Performance |
+150 HP |
Higher-output off-road use |
Expected changes
|
Metric |
Expected Change |
What It Means |
|---|---|---|
|
DPF regeneration |
Eliminated |
No active or forced regeneration with correct calibration |
|
Fuel economy |
Approximately 5-10% potential gain |
Actual MPG depends on load, tune, tires, gearing, and engine condition |
|
EGTs under load |
Approximately 100-200Β°F lower possible |
Reduced exhaust restriction allows heat to leave more efficiently |
|
Backpressure |
Reduced |
DPF/catalyst restriction is removed |
|
Throttle response |
Improved |
Faster response to accelerator input |
|
Intake soot |
Reduced |
EGR recirculation no longer sends soot into the intake |
Which configuration should you choose?
|
Option |
Choice |
Recommended for |
|---|---|---|
|
Tuner |
Mini Maxx V1 |
Higher maximum power |
|
Mini Maxx V2 |
Newer interface and updated controls |
|
|
Exhaust |
Delete Pipe |
Retaining more of the factory exhaust system |
|
4-inch Exhaust |
Balanced exhaust flow and sound |
|
|
5-inch Exhaust |
Maximum exhaust flow and deeper sound |
|
|
Muffler |
Straight Pipe |
Maximum exhaust sound |
|
With Muffler |
Reduced exhaust volume and drone |
How the delete kit works on your 6.7 Cummins
-
Loads the Mini Maxx tune for the modified emissions configuration.
-
Removes DPF and catalyst restriction to stop regeneration cycles.
-
Eliminates EGR recirculation to reduce soot and intake contamination.
-
Provides selectable SOTF power levels for different driving demands.
-
Reduces backpressure and EGTs for improved engine response.
The DPF delete kit requires the correct tuner calibration before the truck is operated with the factory DPF and EGR hardware removed.
Installation information
The kit includes installation instructions, and an owner with basic-to-intermediate mechanical skills can install the bolt-on hardware without fabrication. The tuner should be programmed before the factory emissions hardware is removed.
Corrosion, seized exhaust clamps, and limited access around the EGR cooler can increase install time.
Technical specifications
|
Specification |
Detail |
|---|---|
|
Product Type |
Full DPF/EGR delete bundle |
|
Tuner Options |
H&S Mini Maxx V1 / Mini Maxx V2 |
|
V1 Power Levels |
0 / +60 / +120 / +175 HP |
|
V2 Power Levels |
0 / +50 / +100 / +150 HP |
|
Tuning ConnectionΒ |
Mini Maxx V1 or V2 through the truck's diagnostic connectionΒ |
|
Exhaust Options |
Delete Pipe / 4-inch / 5-inch |
|
Muffler Options |
Straight Pipe / With Muffler |
|
Exhaust Material |
T-409 stainless steel |
|
EGR Hardware |
Valve, cooler removal hardware, block-off components |
|
Systems Removed |
DPF, catalyst, EGR |
|
DEF/SCR |
No factory urea DEF/SCR system |
|
Application |
Off-road |
|
InstallationΒ |
Bolt-on exhaust and EGR hardwareΒ |
No More Emissions Codes
Correct Mini Maxx calibration prevents supported DPF- and EGR-related diagnostic warnings caused by the removed emissions hardware. Unrelated engine, turbocharger, transmission, fuel, wiring, and sensor faults remain active.
DPF and Regeneration Codes
|
DTC Code |
Description |
|---|---|
|
P2002 |
Diesel Particulate Filter Efficiency Below Threshold |
|
P242F |
DPF Restriction - Ash Accumulation |
|
P2452 |
DPF Differential Pressure Sensor Circuit |
|
P2453 |
DPF Differential Pressure Sensor Performance |
|
P2458 |
DPF Regeneration Duration |
|
P2459 |
DPF Regeneration Frequency |
|
P2463 |
DPF Restriction - Soot Accumulation |
EGR System Codes
|
DTC Code |
Description |
|---|---|
|
P0401 |
EGR Flow Insufficient |
|
P0402 |
EGR Flow Excessive |
|
P0403 |
EGR Control Circuit |
|
P0404 |
EGR Control Range / Performance |
|
P0405 |
EGR Position Sensor Circuit Low |
|
P0406 |
EGR Position Sensor Circuit High |
|
P040B |
EGR Temperature Sensor Performance |
Early 6.7L Cummins service information specifically documents EGR-related faults such as P0402, P040B, and P0405, while DPF faults commonly include P242F, P2459, and P2463.
Correct calibration also prevents emissions-related limp mode conditions caused specifically by missing DPF or EGR hardware.
The 2007.5-2009 6.7L Cummins does not use a factory urea DEF system, so DEF/SCR codes are not part of the delete calibration. Send us your VIN and transmission information if you need the exact tuner and exhaust configuration confirmed before ordering.
